Retiwave-1000 Eye Diagnostic Ophthalmic AB Scan Ultrasound Machine Features: Retiwave-1000 is digital ultrasonic system

Basic Info.

Model NO.	RetiWave-1000
Operation Mode	Eyecup, Gel, Aqueous Capsule
Post Processing Measuring Tools	Area, Length, Mark and Annotation
Time Gain Adjustment	0-30dB
Measuring Range	Over 5mm~40mm
Measuring Type	Length of Optic Axis, Automatic Calculation, Resul
Measuring Error	≤0.05mm
Measuring Model	Contact
a Scan Probe Frequency	10MHz
Transport Package	Standard Exporting Package
Trademark	VSO
Origin	Chongqing, China
Production Capacity	100 Units/Month

Product Description

Retiwave-1000 Eye Diagnostic Ophthalmic AB Scan Ultrasound Machine
Features:

Retiwave-1000 is digital ultrasonic system for ophthalmology. With advanced intelligent digital software the parameters of freezed and stored images could be adjusted voluntarily.Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness,axial length and so on which are needed in ophthalmic surgeries, and calculates IOL by axial length. Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical formsand nidi inside the eyeball, doctors can diagnose accurately for examination of cataract, vitreousbody disease, ocular trauma, detachment of retina or choroid, macula disease, and intraoculartumor, etc..

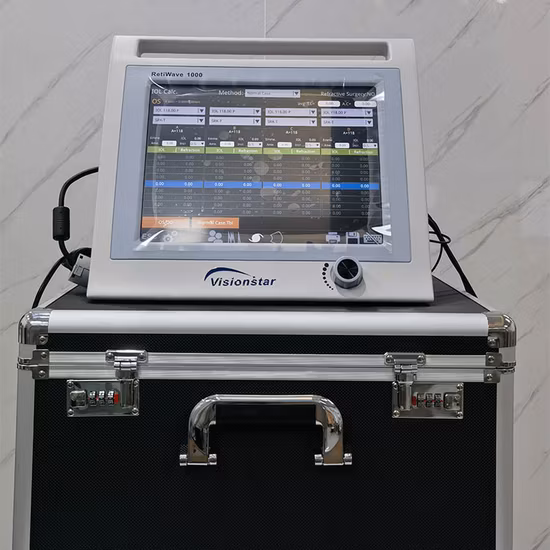

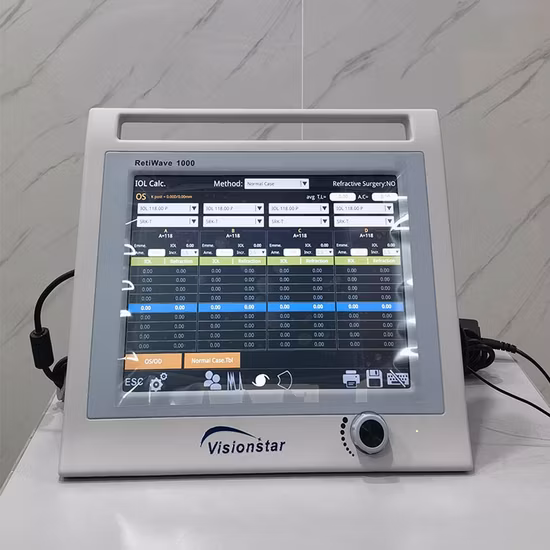

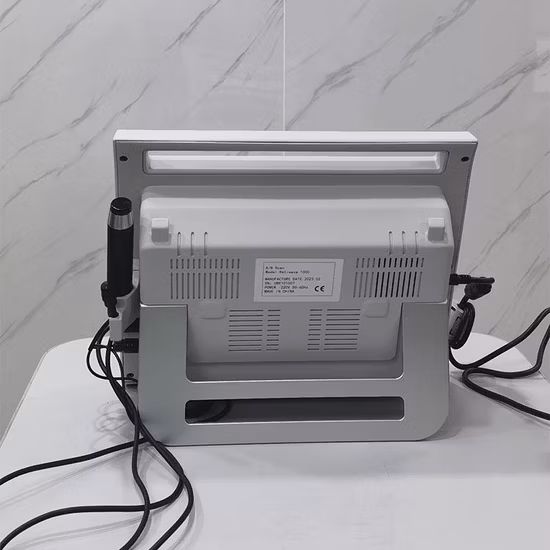

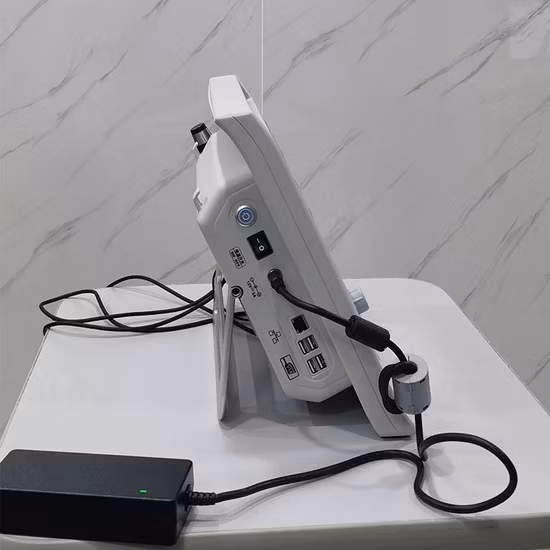

Retiwave-1000 China Manufacturer Best Price Eye Exam Ophthalmology Diagnostic Equipment a B Scanner Ophthalmic Ab Scan Ultrasound Machine

Setup

A Scan and IOL Calculation

B Scan

Specifications:

A Scan Biometry
Probe frequency	10MHz
Measuring model	Contact
Measuring range	over 5mm~40mm
Measuring error	≤0.05mm
Measuring type	Length of optic axis, automatic calculation, result analysis
Image freezing	Image freezing auto, auto+ preservable, manual
Intraocular lens Formula	SRK-T, SRK II, HOLLADAY, BINKHORST-II,HOFFER-Q, HAIGISI
Gain	20~110dB
Time gain adjustment	0~30dB
B Scan
Probe Frequency	10Mhz
Probing Depth	≥50mm
Axial Resolution	≤ 0.2mm
Lateral Resolution	≤0.3mm
Gain Adjustment	20-110db
Time Gain Adjustment	0-30db
Operation Mode	Eyecup, gel, aqueous capsule
Post Processing Measuring Tools	Area, Length, Mark and Annotation
Reviews	100 images available
Others
Size	340mm (L) 320mm(W)115 (H)
Weight	10KG
Power Supply	100-240V 50/60V
